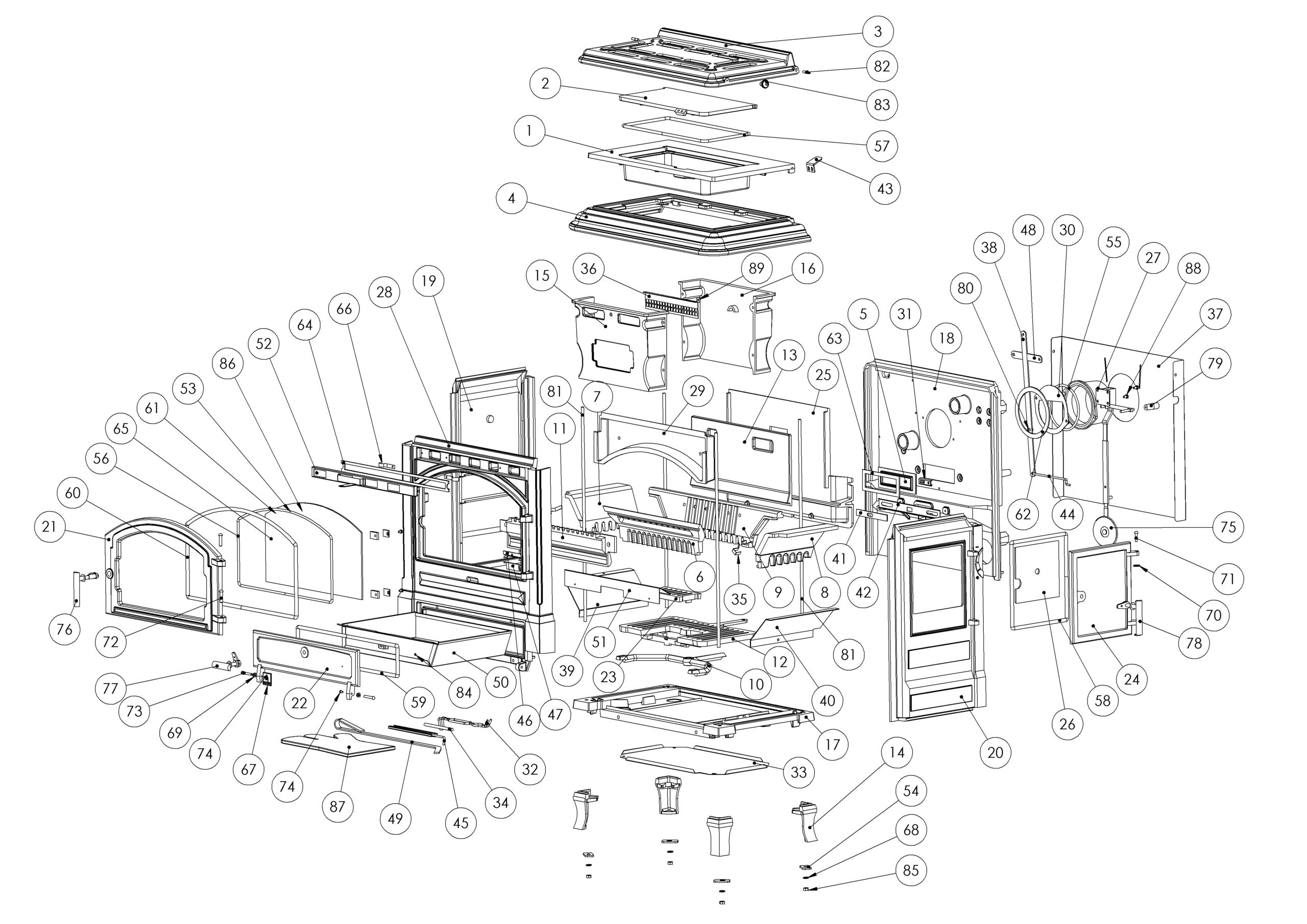

PIÈCES DÉTACHÉES

BAYARD II MIX

REPEREDESIGNATIONN°COMMERCIAL
10096403010_taque62041
20096403510_tampon62042
30096432010_couvercle62037
40096433510_corniche62040
50846216510_tampon ramonage3221
60846410110_corbeille avant6129
70846410210_corbeille gauche6174
80846410310_corbeille droite6170
90846410410_corbeille arriere6169
100846411010_support grille6132
110846411310_support grille avant6118
120846411810_grille6130
130846417010_protecteur arriere6116
140866500110_pied47284
150949209110_tremie avant19733
160949209210_tremie arriere19734
170949400510_fond foyer19781
180949401010_dos de foyer19776
190949401570_pignon gauche foyer19309
200949402070_pignon droit foyer19782
210949404030_porte foyer19311
220949405530_porte cendrier19312
230949412010_grille tirette19777
240949413070_porte chargement lat19783
250949414510_recuperateur19303
260949417470_protecteur porte19784
271905907510_buselot5796
283099402510_devanture foyer61586
293099422010_deflecteur air sec. sup.61587
300096449310_reduction66906
310811156610_loquet3553
320821392110_crochet nu40494
330846251510_protection sol6099
340846256510_poignee5998
350846271010_equerre17049
360846275210_bouche trou7058
370846440910_dos tole nu6117
380846450010_commande grille6126
390846458510_chasse cendre gauche19778
400846458610_chasse cendre droit19779
410846552510_targette40305
420866552510_targette28309
430866570810_equerre arr. couvercle15153
440866581810_tige de grille12235
450866592010_crochet ens5625
460914566910_support clapet5770
470914584010_clapet5775
480949250510_guide commande grille32114
490949252910_pique feu40493
500949458010_cendrier ens19780
510949458810_chasse-cendres avant32118
523099457810_conduit reglage air61604
533856048010_serre pyrex13479
544906278010_clame6088
550000001069_corde cer.autoc. d6 buselot14979
560000001069_corde cer.autoc. d6 joint vitre14979
570000001073_corde cerapode d8 tampon4138
580000001111_corde cerapode d10 porte charg15927
590000001111_corde cerapode d10 porte cendrier15927
600000001111_corde cerapode d10 porte foyer15927
610000001226_joint serre pyrex 6mm31856
620000001327_joint buselot20151
630000001412_joint tampon nettoyage5719
640000001717_joint targette61600
650000002163_vitre 394649125919
660000003889_ressort bague venturi44697
670000003927_logo surdiac carre41991
680000005002_rond. eventail AZ8 zing. DIN67984826
690000005060_rondelle D6 ZN NFE2551332152
700000006046_rond. starlock d842887
710000007089_rivet porte charg. tr 6x25 zn31846
720000007090_rivet porte foyer tr 8x32 zn31848
730000007091_rivet cendrier fore TR6x40 zn31849
740000007092_BOUCHON CENDRIER TR 4,2 X 831850
750000012044_thermostat 084645714
760000130201_ens poignee porte foyer 00964 EMAIL65552
770000130203_ens poignee porte cendrier 00964 EMAIL65598
780000130204_ens poignee porte chargement 00964 EMAI65599
790000014009_POIGNEE FUSEAU2321
800000017014_vis epaulée M6 CGME 2505611
810000017142_tirant 08464-56 A LG6306033
820000017260_axe 6mm lg28mm15109
830000017525_bouton couvercle acier41906
840000024034_ecrou hex m315742
850000024035_ecrou m813083
860000024071_vis TC INOX DIN 7985 M5x86462
870000025202_gant cuir rouge38548
880000024058_vis din 933 m6x10 zc noir15898
890000024534_rondelle plate M5 DIN 902167488
900000709049_spray laque anth sans prop.200ml40785
910000900048_vis TC zinguee M5x827500
920000900060_vis TC zinguee M6x1015919
930000900062_vis TC zinguee M6x1627513
940000900106_ vis TF M6x1627554
950000900141_vis TC M6x3013958
960000900173_ecrou hex m6900173
